Ac contactor

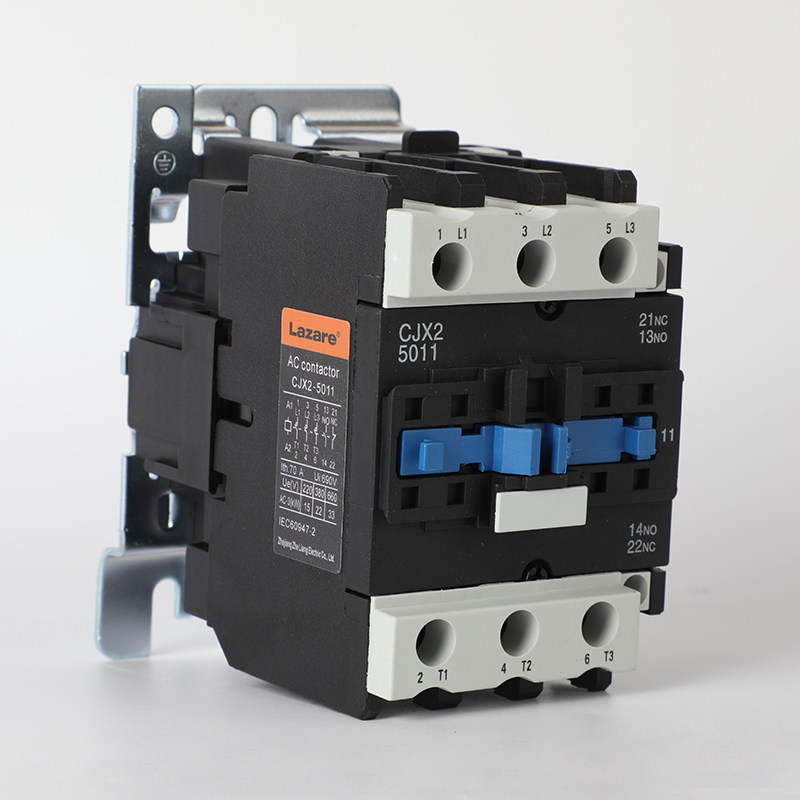

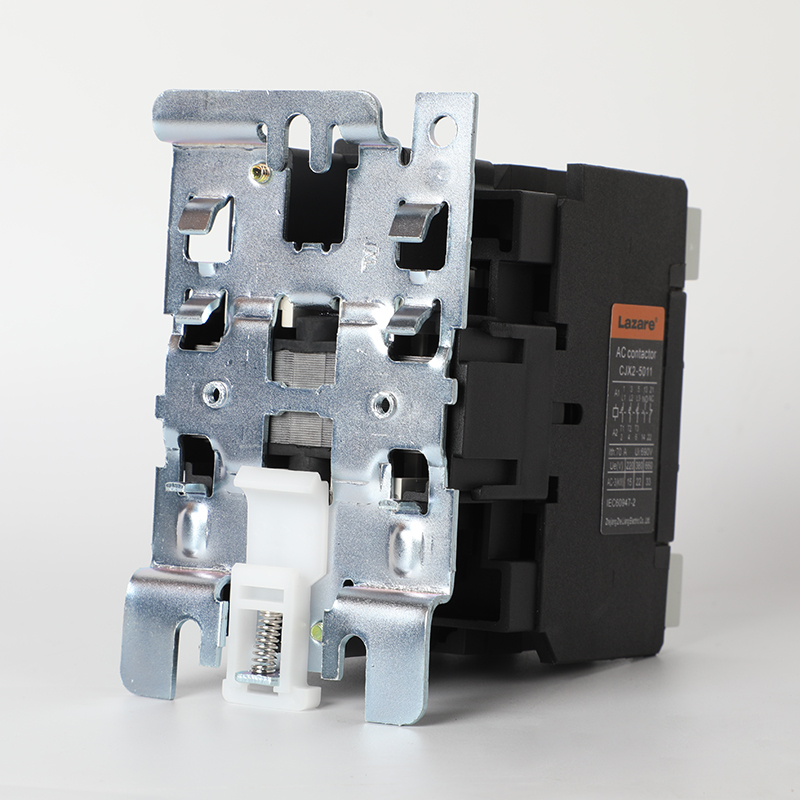

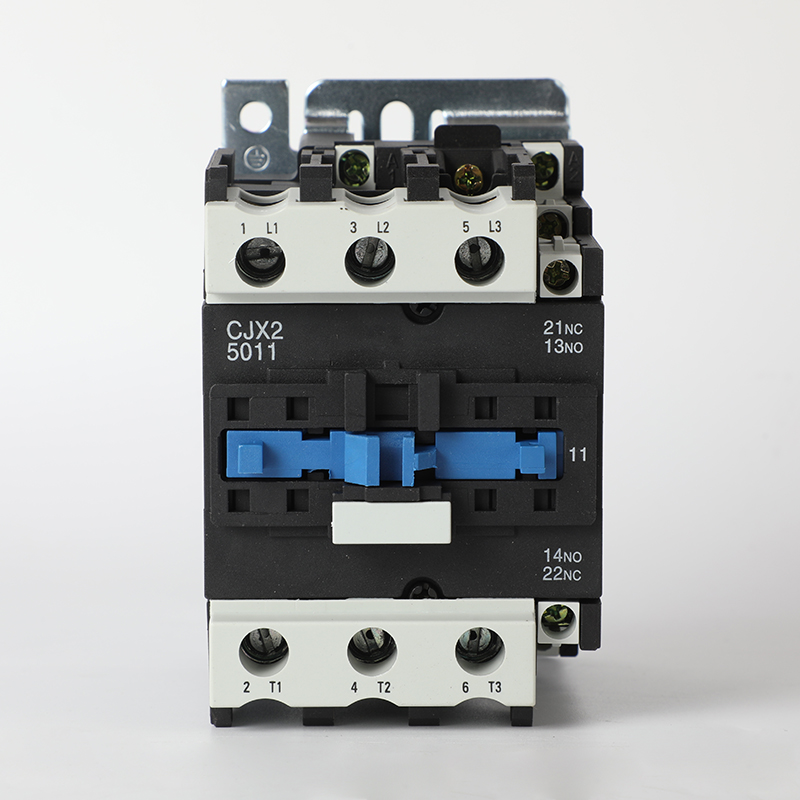

CJX2-5011 AC contactor
Applicable Scope
CJX2 series AC contactors (hereinafter referred to as contactors) are mainly used in circuits with AC 50Hz (or 60Hz), voltage up to 690V, and current up to 95A. They are used for remote connection and disconnection of circuits, frequent starting and control of AC motors, and can be combined with appropriate thermal relays to form electromagnetic starters to protect circuits that may be overloaded.
The contactor complies with the standards: GB/T 14048.4, IEC60947-4-1.
Normal working and installation conditions
1. The ambient air temperature is: -5℃+40℃, and its average value within 24 hours does not exceed +35℃.
2. Altitude: no more than 2000m.
3. Atmospheric conditions: When the maximum temperature is +40°C, the relative humidity of the air does not exceed 50%; higher relative humidity is allowed at lower temperatures, such as 90% at 20°C. Special measures should be taken against occasional condensation due to temperature changes.
4. Pollution level: Level 3.
5. Installation category: Category III.
6. Installation conditions: The inclination between the installation surface and the vertical surface is not greater than ±5°.
7. Shock and vibration: The product should be installed and used in a place without significant shaking, impact and vibration.
Technical parameters
|
Model |
CJX2-09 |
CJX2-12 |
CJX2-18 |
CJX2-25 |
CJX2-32 |
CJX2-40 |
CJX2-50 |
CJX2-65 |
CJX2-80 |
CJX2-95 |
||
|
Rated insulation voltage Ui(V) |
690 |
690 |
690 |
690 |
690 |
690 |
690 |
690 |
690 |
690 |
||
| Conventional thermal current Ith(A) |
20 |
20 |
32 |
40 |
50 |
60 |
80 |
80 |
95 |
95 |
||
|
Rated operating current Ie(A) 380V 660V
|
AC-3 |
9 |
12 |
18 |
25 |
32 |
40 |
50 |
65 |
80 |
95 |
|
|
AC-4 |
3.5 |
5 |
7.7 |
8.5 |
12 |
18.5 |
24 |
28 |
37 |
44 |
||
|
AC-3 |
6.6 |
8.9 |
12 |
18 |
21 |
34 |
39 |
42 |
49 |
49 |
||
|
AC-4 |
1.5 |
2 |
3.8 |
4.4 |
7.5 |
9 |
12 |
14 |
17.3 |
21.3 |
||
|
Controllable three-phase squirrel cage motor powerAC-3(kW)
|
220V |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
25 |
|
|
380V |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
||
|
440V |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
||
|
660V |
5.5 |
7.5 |
10 |
15 |
18.5 |
30 |
37 |
37 |
45 |
45 |
||
|
Electrical life (10,000 times)
|
AC-3 |
100 |
100 |
100 |
100 |
80 |
80 |
60 |
60 |
60 |
60 |
|
|
AC-4 |
20 |
20 |
20 |
20 |
20 |
15 |
15 |
15 |
10 |
10 |
||
|
Mechanical life (10,000 times) |
1000 |
1000 |
1000 |
1000 |
800 |
800 |
800 |
800 |
600 |
600 |
||
|
Operation frequency (times/h)
|
Electrical life
|
AC-3 |
1200 |
1200 |
1200 |
1200 |
600 |
600 |
600 |
600 |
600 |
600 |
|
AC-4 |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
||
|
Mechanical life |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
||
|
Pull-in(VA) AC coil power Keep(VA) 50Hz power(W) |
70 |
70 |
70 |
110 |
110 |
200 |
200 |
200 |
200 |
200 |
||
|
8 |
8 |
8 |
11 |
11 |
20 |
20 |
20 |
20 |
20 |
|||
|
1.8~2.7 |
1.8~2.7 |
3~4 |
3~4 |
3~4 |
6~10 |
6~10 |
6~10 |
6~10 |
6~10 |
|||
|
Coil operating range |
The pull-in voltage is 85%Us~110%Us, and the release voltage is 20%Us~75%Us |
|||||||||||
|
Number of auxiliary contacts |
1NO(1NC) |
1NO+1NC |
||||||||||
|
Basic parameters of auxiliary contacts |
AC-15:360VADC-13:33W Ith:10A |
|||||||||||
Installation Dimensions
Note: Dimension H1 is the maximum height after assembling F4 auxiliary contact group; Dimension H2 is the maximum height after assembling LA air delay head.
CJX2 appearance and installation dimensions (unit: mm)
| Contactor Model | W | L | H | H1 | H2 | A | B | D | Remark |
| CJX2-09 | 47 | 76 | 82 | 120.5 | 140.5 | 34/35 | 50/60 | 4.5 | In addition to screw mounting, it can also be mounted using a 35mm mounting rail |
| CJX2-12 | 47 | 76 | 82 | 120.5 | 140.5 | 34/35 | 50/60 | 4.5 | |
| CJX2-18 | 47 | 76 | 87 | 125.5 | 145.5 | 34/35 | 50/60 | 4.5 | |
| CJX2-25 | 57 | 86 | 95 | 133.5 | 153.5 | 40 | 48 | 4.5 | |
| CJX2-32 | 57 | 86 | 100 | 138.5 | 158.5 | 40 | 48 | 4.5 | |
| CJX2-40 | 77 | 129 | 116 | 154.5 | 174.5 | 40 | 105 | 6.5 | In addition to screw installation, it can also be installed using 35mm and 75mm mounting rails |
| CJX2-50 | 77 | 129 | 116 | 154.5 | 174.5 | 40 | 105 | 6.5 | |
| CJX2-65 | 77 | 129 | 116 | 154.5 | 174.5 | 40 | 105 | 6.5 | |
| CJX2-80 | 87 | 129 | 127 | 165.5 | 185.5 | 40 | 105 | 6.5 | |
| CJX2-95 | 87 | 129 | 127 | 165.5 | 185.5 | 40 | 105 | 6.5 |
